High-Efficiency Circulator Pump for Hot Water Systems - Large Capacity Pressure Booster for Home & Commercial Use - Perfect for Hydronic Heating & Domestic Hot Water Circulation
$212.56 $386.48
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:26 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:98063943
Guranteed safe checkout
Product Description

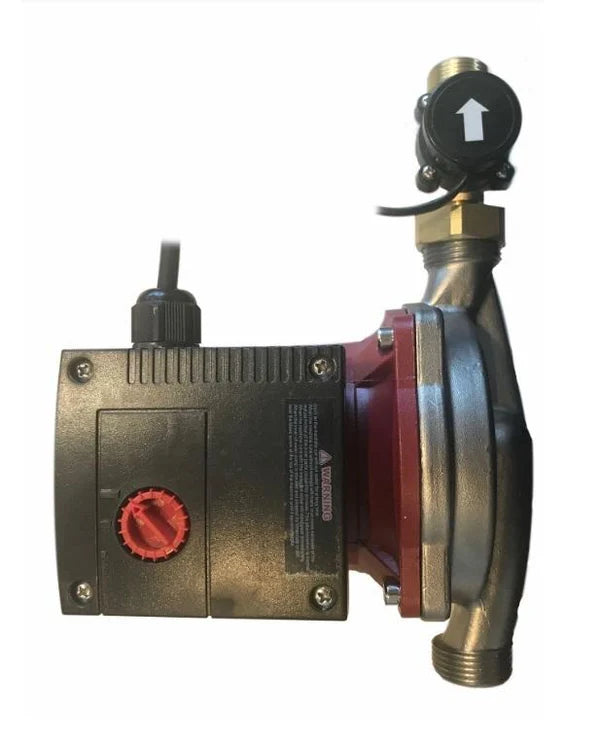

The UPA Booster series are stainless steel circulator pumps with integrated flow sensor. Designed for water pressure boosting in domestic properties to provide additional pressure to hot and cold-water taps and similar outlet points. These extremely quiet pumps have particular application in homes equipped with gravity fed or low-pressure hot water systems.
Features
- Maintenance free
- Low noise
- Low energy consumption
- Corrosion-resistant stainless steel pump housing
Technical Features
- Enclosure class: IP42
- Insulation class: F
- Duty rating: Continuous
- Liquid temperature range: 0-70°C
- Maximum ambient temperature: 40°C
- Maximum operating pressure: 10 bar
This model is shown on the Red Line on the pump curve
Model | kW | Inlet/Outlet | Phase | Voltage |
UPA-25-150 | 0.3 | 25mm 20mm Unions | 1 | 220-240 |
Dimensions
| Model | L | H1 | H2 | B1 | B2 | G |
| UPA25-150 | 185mm | 28mm | 145mm | 90mm | 66mm | 25mm |
